General Purpose Engines
Honda General Purpose Engines
Honda is the world’s largest manufacturer of engines and has earned its reputation for unsurpassed quality, performance and reliability. Our general purpose engines are designed to meet or exceed the demands of our customers through advanced engine technology, quality components and state-of-the-art manufacturing facilities throughout the world. Honda's GX Series engines are designed for the most demanding commercial applications.

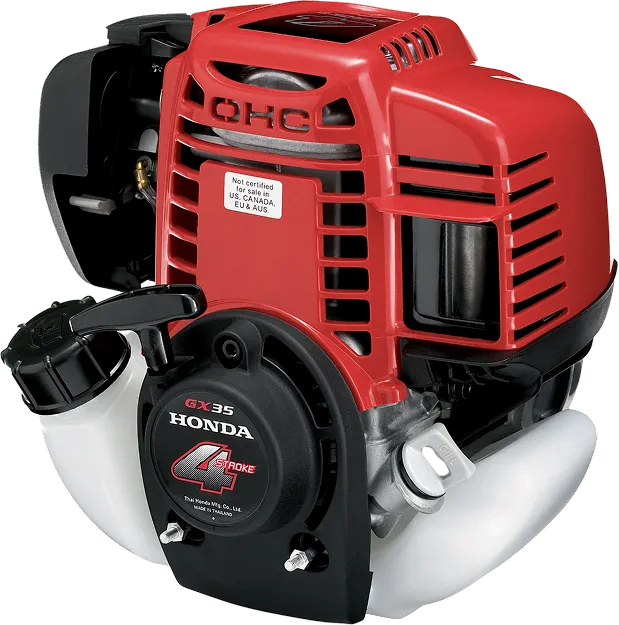

GX35
Max. Net Power
1.0 kW (1.3 HP) @ 7,000 rpm
Displacement
35.8 cc
Fuel System
Carburetor
Fuel Tank Capacity
0.65 L
Fuel Consumption
0.71 L/hr
Dimensions (L x W x H)
198 mm x 234 mm x 240 mm
Dry Weight
3.46 kg

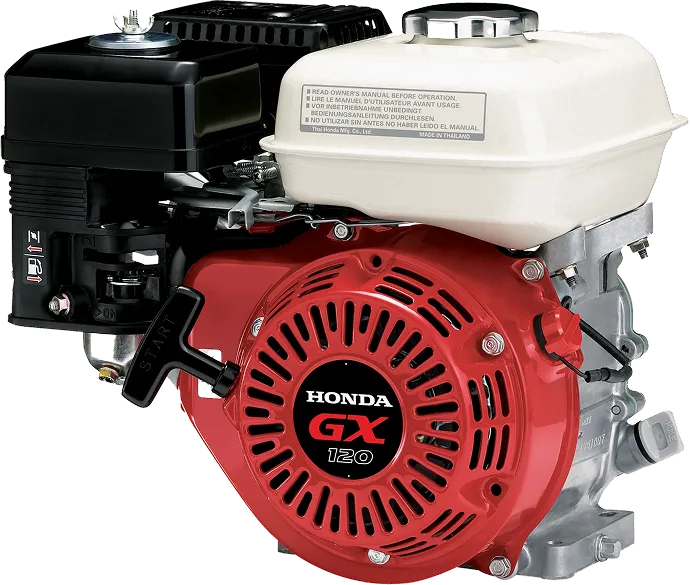

GX120
Max. Net Power
2.6 kW (3.5 HP) @ 3,600 rpm
Displacement
118 cc
Fuel System
Carburetor
Fuel Tank Capacity
2.0 L
Fuel Consumption
1.0 L/hr
Dimensions (L x W x H)
305 mm x 346 mm x 329 mm
Dry Weight
12.9 kg

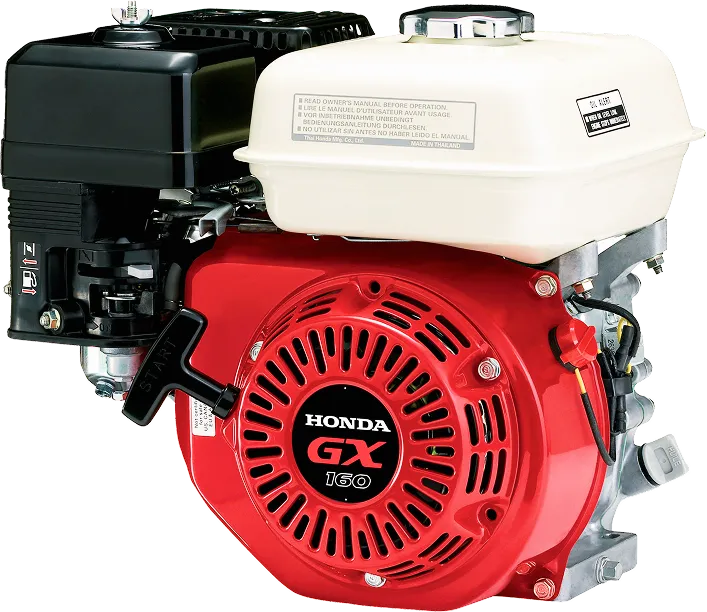

GX160
Max. Net Power
3.6 kW (4.8 HP) @ 3,600 rpm
Displacement
163 cc
Fuel System
Carburetor
Fuel Tank Capacity
3.1 L
Fuel Consumption
1.4 L/hr
Dimensions (L x W x H)
304 mm x 362 mm x 335 mm
Dry Weight
15 kg

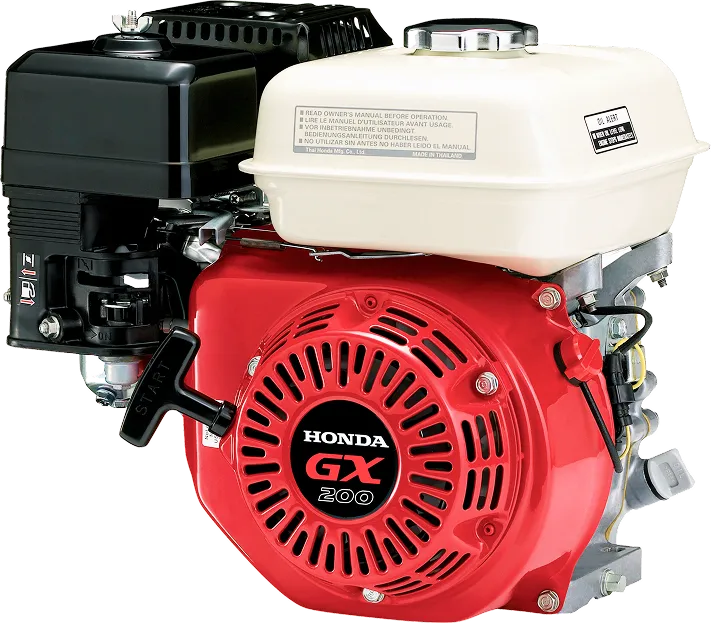

GX200
Max. Net Power
4.1 kW (5.5 HP) @ 3,600 rpm
Displacement
196 cc
Fuel System
Carburetor
Fuel Tank Capacity
3.1 L
Fuel Consumption
1.7 L/hr
Dimensions (L x W x H)
313 mm x 376 mm x 335 mm
Dry Weight
16 kg

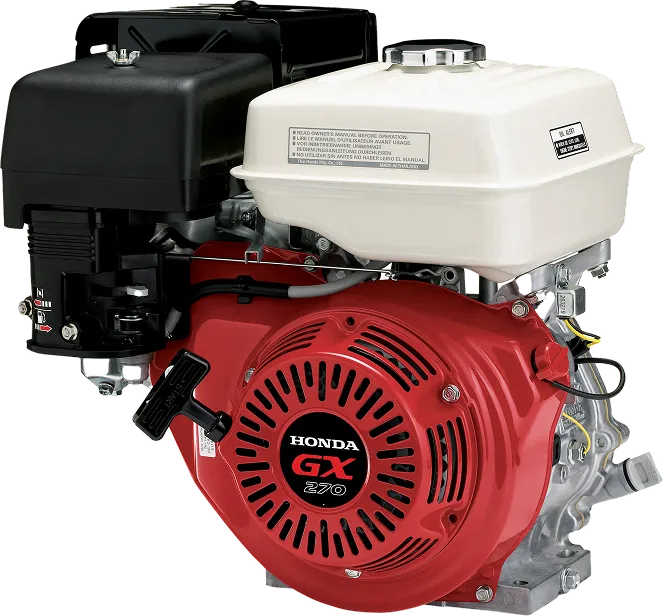

GX270
Max. Net Power
6.0 kW (8.0 HP) @ 3,600 rpm
Displacement
270 cc
Fuel System
Carburetor
Fuel Tank Capacity
5.3 L
Fuel Consumption
2.4 L/hr
Dimensions (L x W x H)
355 mm x 430 mm x 410 mm
Dry Weight
25 kg

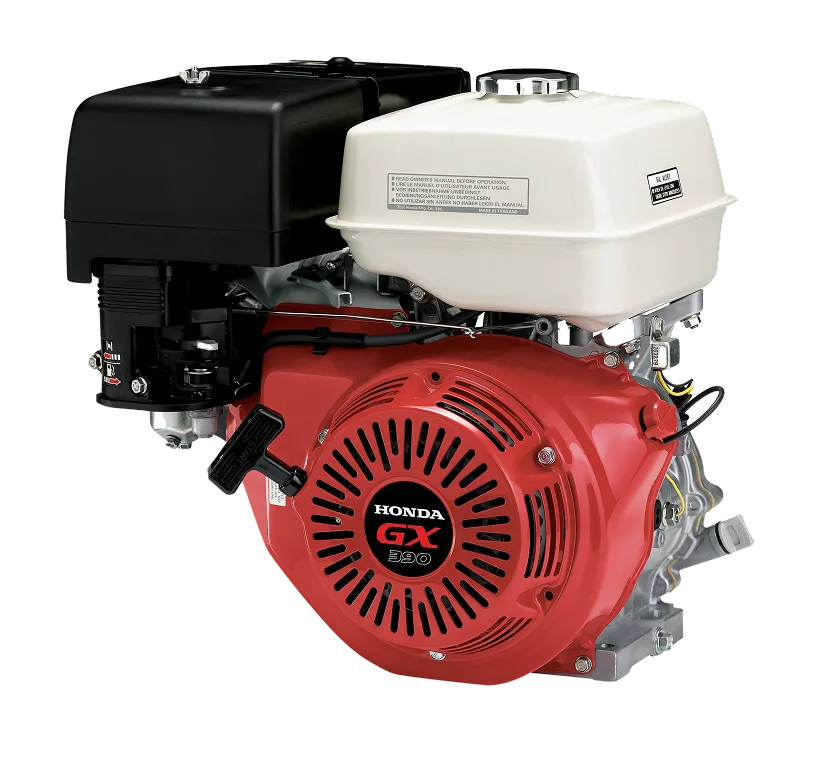

GX390
Max. Net Power
8.2 kW (11.0 HP) @ 3,600 rpm
Displacement
389 cc
Fuel System
Carburetor
Fuel Tank Capacity
6.1 L
Fuel Consumption
3.4 L/hr
Dimensions (L x W x H)
380 mm x 450 mm x 443 mm
Dry Weight
31.5 kg
GX690
Max. Net Power
16.5 kW (22.1 HP) @ 3,600 rpm
Displacement
688 cc
Fuel System
Carburetor
Fuel Tank Capacity
NA
Fuel Consumption
6.7 L/hr @ 3,600 rpm
Dimensions (L x W x H)
429 mm x 410 mm x 438 mm (T-Type)
Dry Weight
44.6 kg

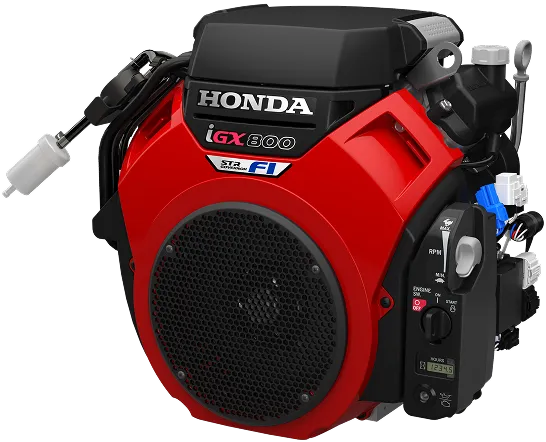

iGX800
Max. Net Power
18.6 kW (24.9 HP) @ 3,600 rpm
Displacement
779 cc
Fuel System
Electronic Fuel Injection
Fuel Tank Capacity
NA
Fuel Consumption
7.1 L/hr @ 3,600 rpm
Dimensions (L x W x H)
429 mm x 492 mm x 438 mm (T-Type)
Dry Weight
47.1 kg
