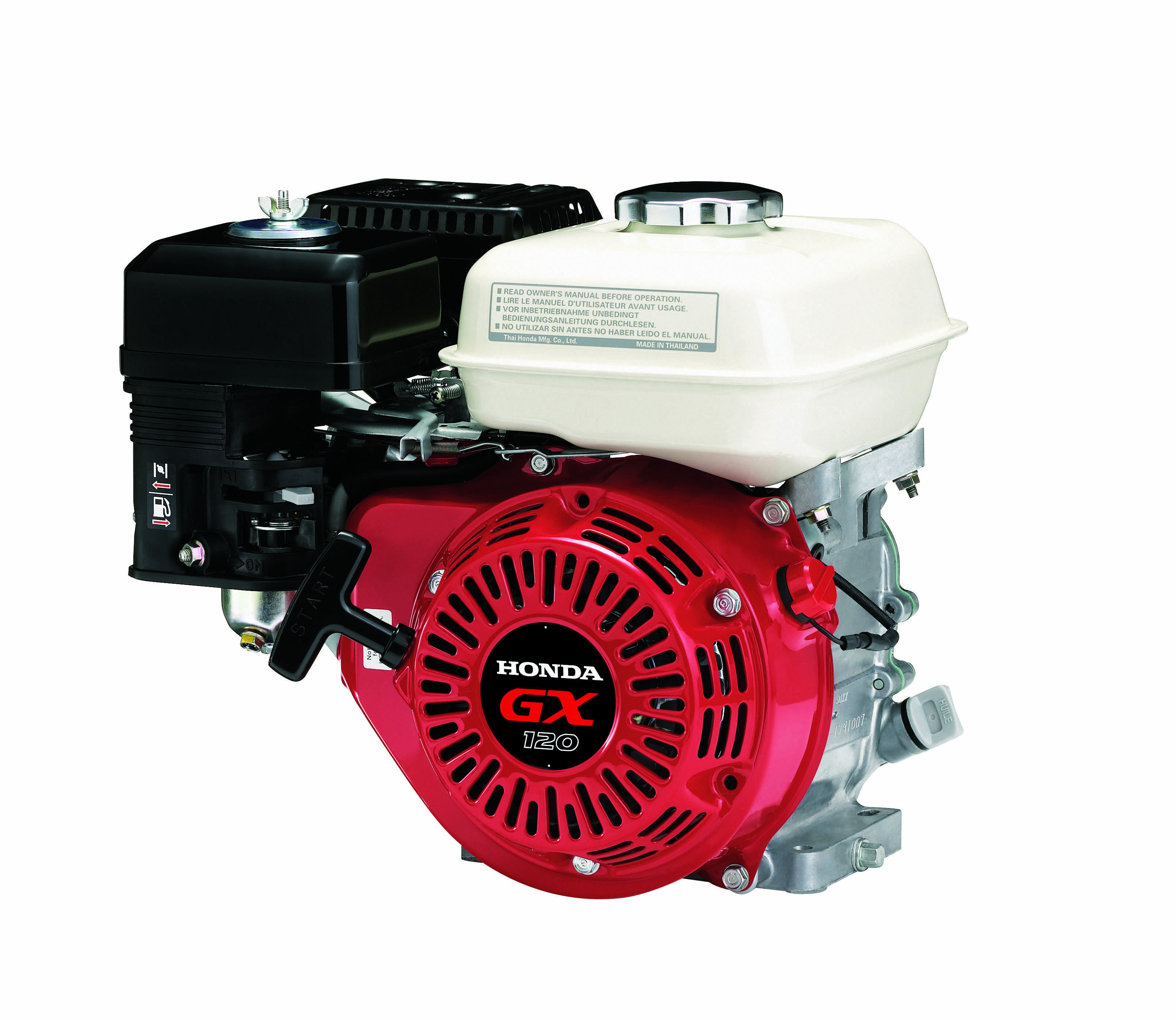

GX120
The GX series is Honda’s premium commercial grade engine range. Designed with all of Honda’s engineering and production experience, the GX120 engine is easy starting and delivers strong power and torque. This product features the new 4 stroke engine with 3.5 HP, 118 cc. Displacement and 2 litres fuel tank capacity.
features
GX Series Commercial Grade Engine
Powerful Honda 4-stroke engine for unsurpassed torque and fuel efficiency. Incredibly quiet and virtually smoke-free. No need to mix oil and gas. Runs on regular unleaded gasoline.
Oil Alert
The Oil Alert feature enables products to be equipped with a safety system that shuts the engine down if oil reaches an unsafe operating level. This helps prevent engine damage from overheating due to lack of oil. 2 years domestic warranty against manufacturer defect.
Warranty
2 years domestic warranty against manufacturer defect.
SPECIFICATIONS
| Max. Net Power (SAE J1349) | 2.6kW (3.5HP) @ 3,600rpm |
| Max. Net Torque (SAE J1349) | 7.3Nm (0.74kg-m) @ 2,500rpm |
| Engine Type | Air-Cooled, 4 Stroke, OHV, Single Cylinder |
| Bore and Stroke (mm) | 60 x 42 |
| Displacement (cc) | 118 |
| Compression Ratio | 8.5 : 1 |
| Ignition System | Transistorized Magneto |
| Starting System | Recoil |
| Fuel Tank Capacity (litres) | 2 |
| Oil Capacity (litres) | 0.56 |
| Air Cleaner | Semi Dry, Oil Bath, Dual Type, Silent type |
| Fuel Consumption | 1.0L/hr |
| Dimensions (L x W x H) (mm) | 305 x 346 x 329 |
| Dry Weight (kg) | 12.9 |
